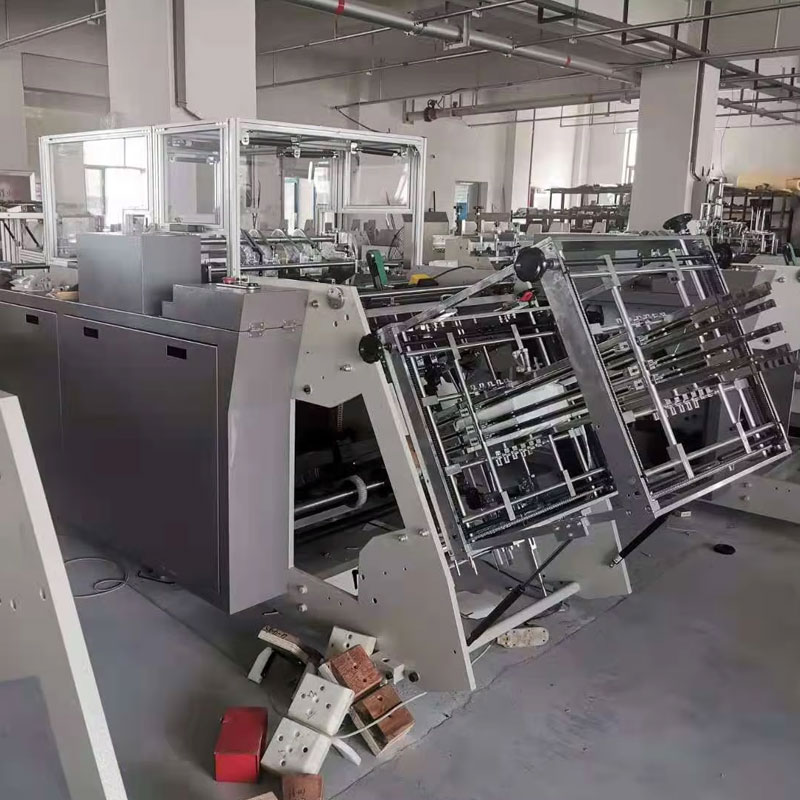

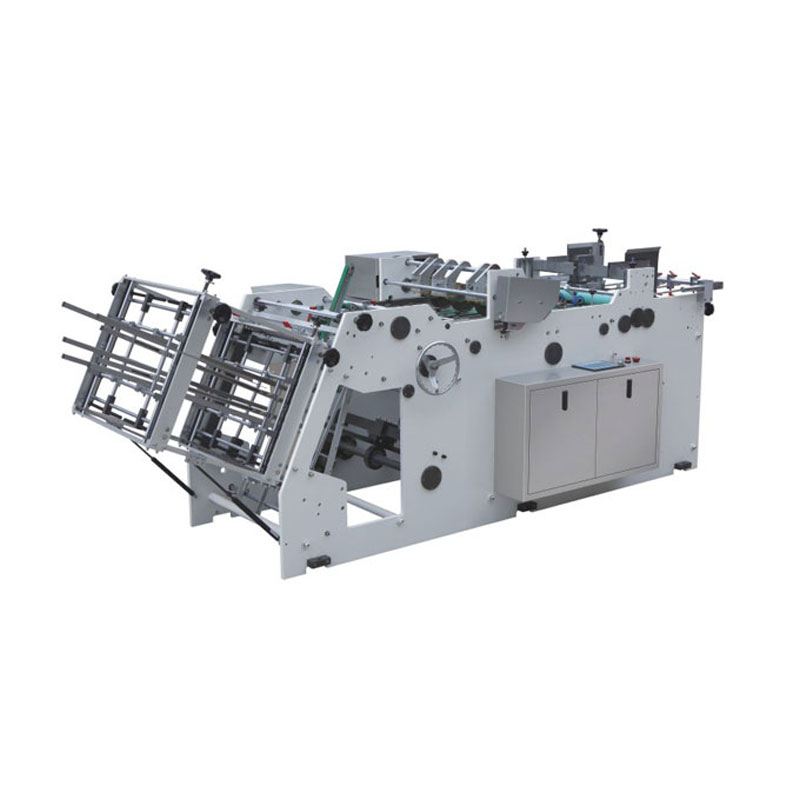

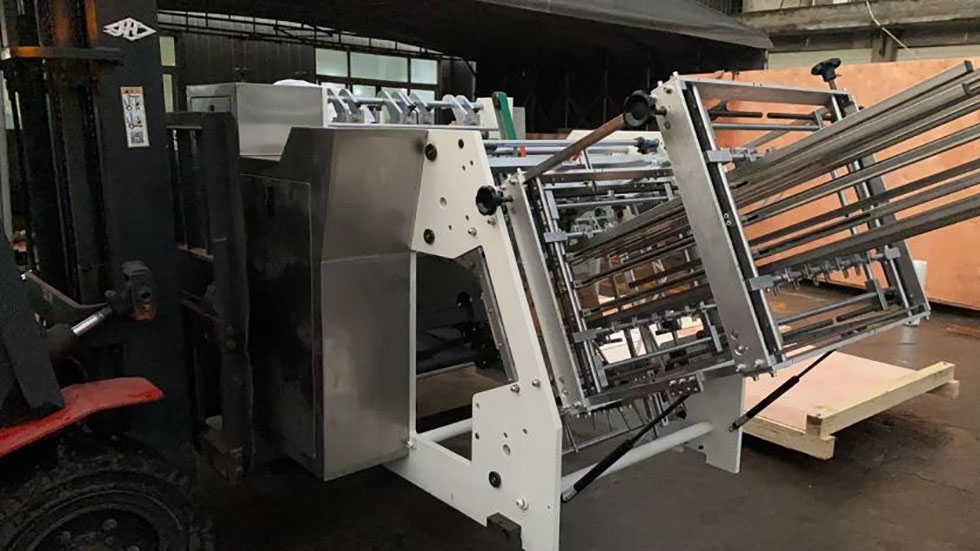

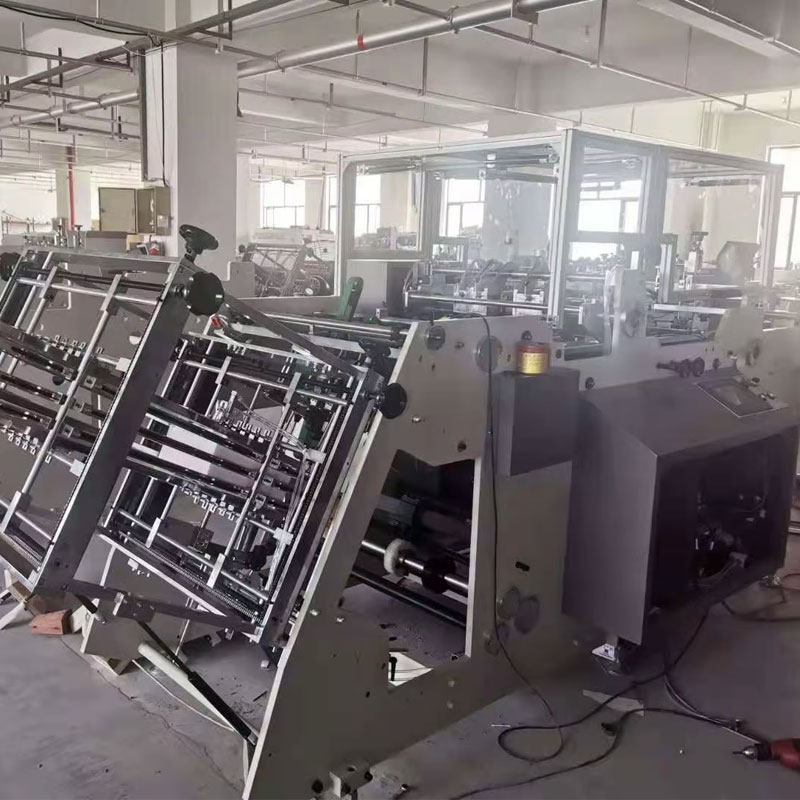

Automatic carton erecting machine adopts micro-computer.PLC,alternating current frequency converter,the vacuum-sucking paper feeding,auto gluing,automatic paper tape counting,and chain drive.All of these main parts and electric control system adopts imperted brand to guarantee steady working,precise positioning,smooth running,safety and reliability operation.
| Type | LJZHJ-800 |
| Production capacity | 50-160pcs/min |
| Suitable Material | 200-600g/m²card paper,PE coated paper,kraft paper,corrugated paper |
| Length | L80-450mm,degree:5° -40° |
| Width | B100-600mm Height H15-200mm |
| Total Power | 4.0KW |
| Total Weight | 2.2T |
| Overall Dimension | 3600X1500X1700mm |
| Power Source | 380V 50HZ |
Automatic carton erecting machine is an ideal choice to produce hamburger boxes, French fries box, food tray, lunch box, Chinese noodle box, hot dog box, etc.

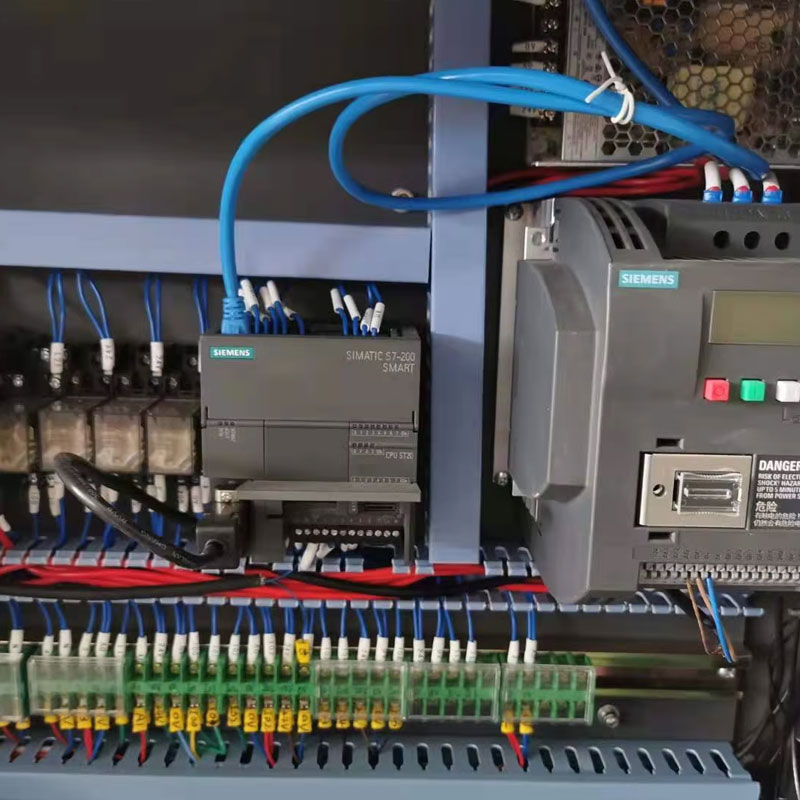

1. Intelligent system with Siemens PLC+HMI, all parameters can be set to meet production requirements
2. Touch screen Easy operate, smart alarm system, defective self-detection
2. Touch screen is easy to operate, intelligent alarm system, self-detection of defects
3. Optical fiber ensures high-speed operation stability

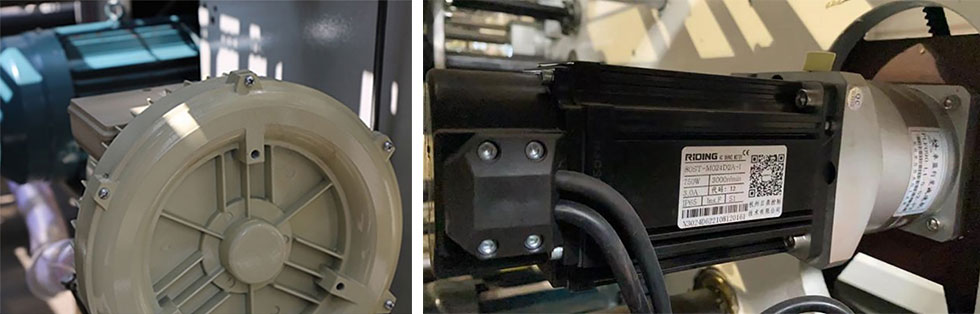

4. Servo motor with photoelectric tube automatically corrects deviation to ensure accuracy
4. Cylinder lifting structure is adopted for raw material loading and unloading, and fully automatic constant tension control is adopted for coiling.
5. Heavy duty machine body runs smoothly and requires less maintenance for life.
1.The Automatic carton erecting machine is highly efficient.The working speed is 50-160 pieces per minute and finished produces are automatically counted.It can be customized to do different size and shaped boxes though changing mold.

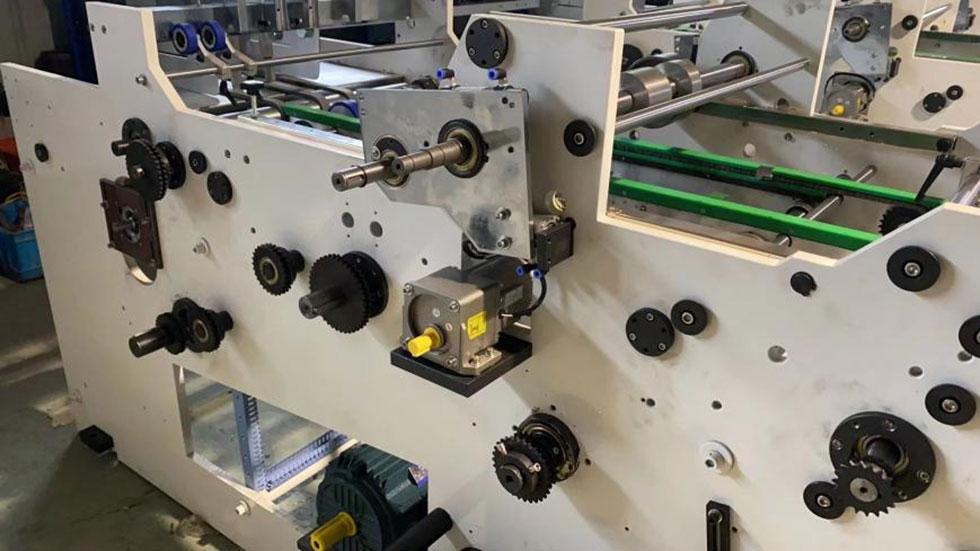

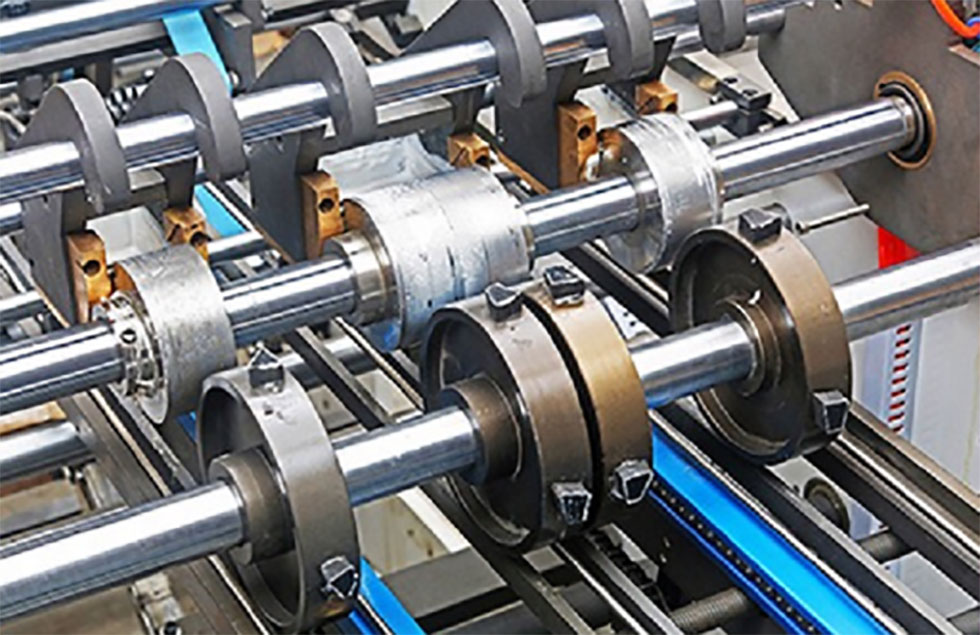

2.The chain drive is adopted in the machine to ensure the smooth running,and endurable structure.Each part is separated to reduce noise and workload,as well as to increase the stability.
3.Time of paper feeding is adjusted by cam.simply operating,reducing failure rate. And vacuum-sucking paper feeding.
4.Automatic gluing systems controlled by reduce motor from sponge.

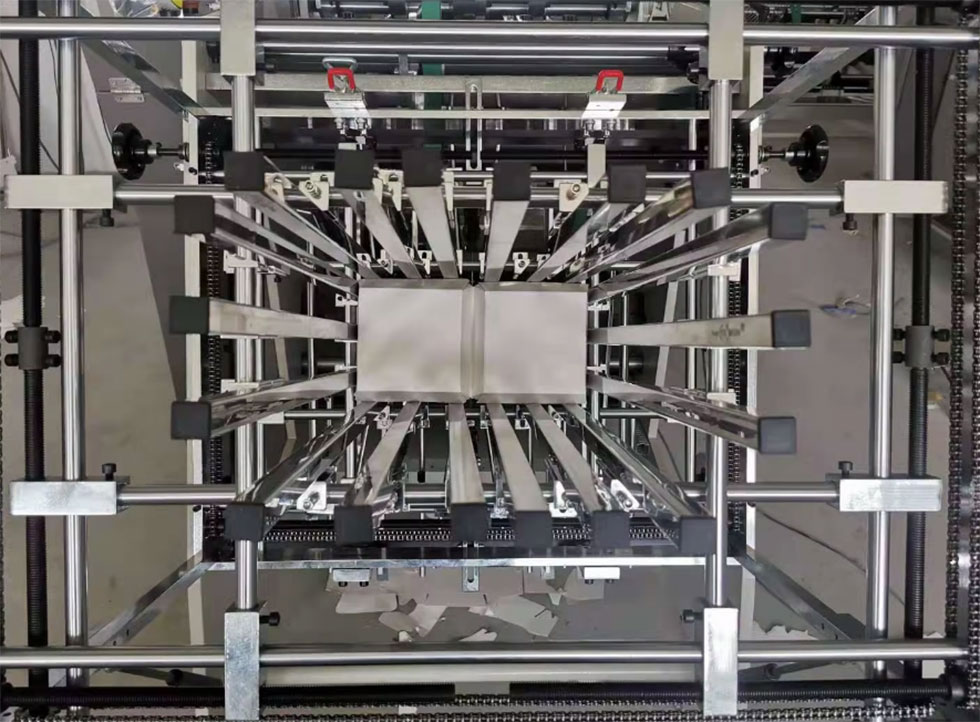

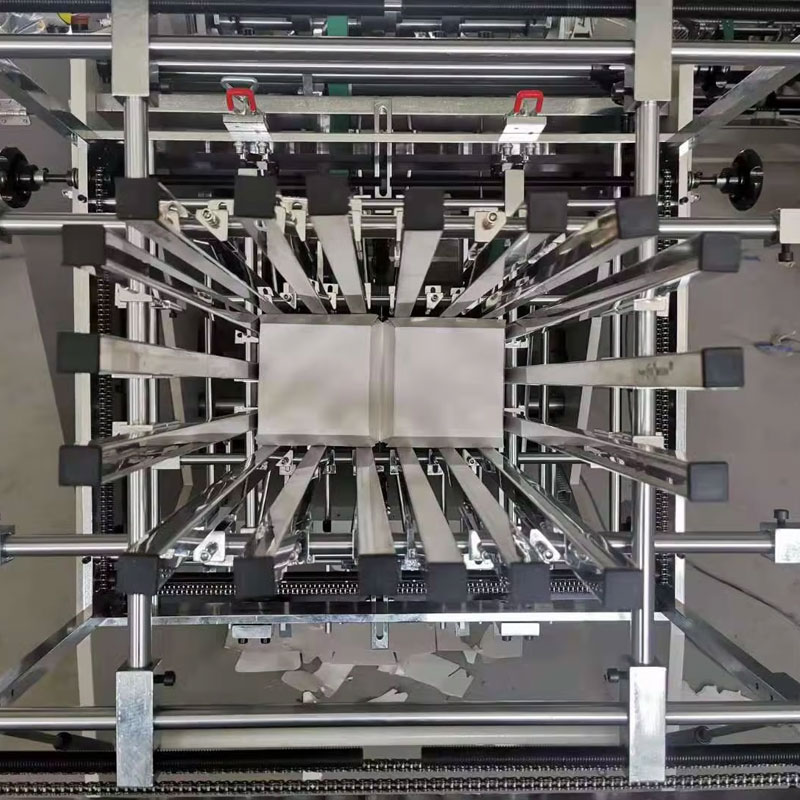

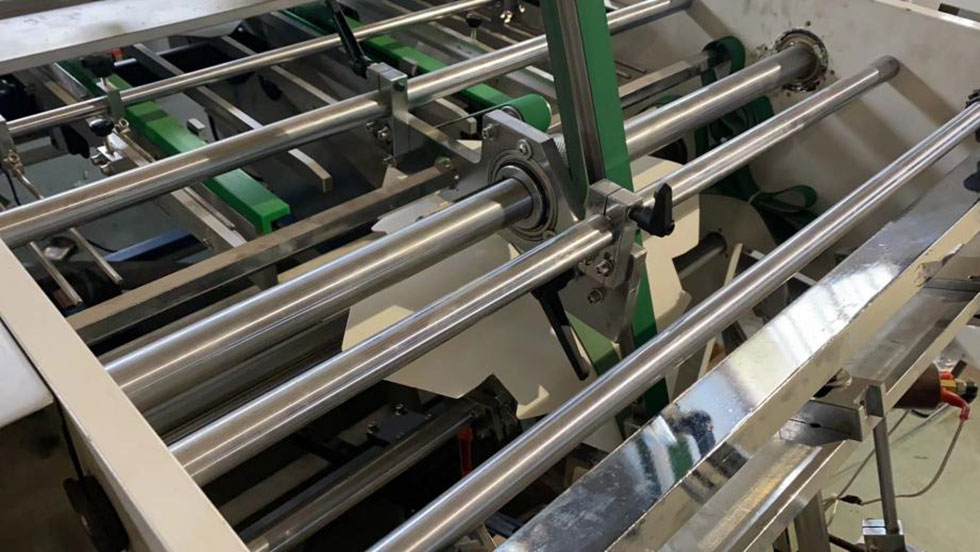

5.Every part of forming and collecting system can be adjusted according to the size of mold.The whole collection system can be opened to change mold and install the forming parts conveniently.
6.It adapts paper tape counting equipment to count product quickly and accurately,and to readjusted
